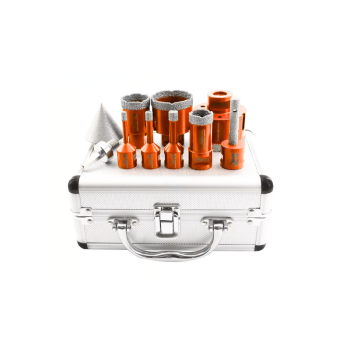

TKQ-01 10pcs Diamond Drilling Core Bits for Porcelain Tile & Marble - OEM & ODM Solutions for Distributors, Wholesalers, and Importers
- group name
- Tile Drilling Tools
- Min Order
- 1 piece
- brand name
- TILER tile cutting and laying tools distrubutor
- model
- TKQ-01
- Nearest port for product export
- Shanghai, Ningbo, Guangzhou, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash
- update time
- Fri, 05 Dec 2025 17:25:23 GMT
Paramtents
Drill Bits 6mm, 8mm, 10mm, 25mm, 35mm, 50mm, 65mm
Finger Bit 10mm
Chamfer Bit 50mm
Material Diamond
Packging & Delivery
-
Min Order1 piece
Briefing
TKQ-01 Diamond Drilling Core Bits (10pcs) for Porcelain Tile & Marble - OEM/ODM & Wholesale Distributor Options - Superior Beveling Hole Saw Designed for Professional Tiling and Construction Use
Detailed
◢ SPECIFICATION
|
ART
|
QTY/INNER BOX
|
QTY/OUTER BOX
|
|
TKQ-01
|
/
|
/
|
◢ DESCRIPTION
TKQ-01 10pcs Diamond Drilling Core Bits for Porcelain Tile & Marble - OEM & ODM Solutions for Distributors, Wholesalers, and Importers
1. Drill Bits
Diameter: 6mm, 8mm, 10mm, 25mm, 35mm, 50mm, 65mm
Total Length: 60mm
Connection: 5/8-11 Threa
Diamond Segment Height: 10mm
2. Finger Bit
Diameter: 10mm
Workable Length: 50mm
Connection: 5/8-11 Thread
Total Length: 75mm
3. Chamfer Bit
Diameter: 50mm
Workable Length: 45mm
Connection: 5/8-11 Thread
Total Length: 55mm
4. SDS Adapter
Function: Enables the use of 5/8-11 threaded core bits with standard SDS drills (hand drill or electric drill).
Total Length: 72mm
Shank Length: 45mm
Package Size
Box Dimensions: 22cm x 15cm x 8cm
Application
Drill Bits: For dry/wet drilling in porcelain tile, granite, marble, and ceramic.
Finger Bit: To enlarge, shape, and/or round the bevel of existing holes in porcelain, hard ceramic, marble, and granite.
Chamfer Bit: For chamfering, widening, grinding, and polishing exit holes.
SDS Adapter: Allows 5/8-11 thread core bits to be fitted onto drills with an SDS arbor.
Features
Vacuum brazed technology for highly efficient working performance.
Fast and smooth drilling.
Long service lifetime.
Reduces chipping and minimizes breakage.
Less loss of material during operation.
Generates less heat.
Delivers a better finish quality.
◢FAQ
What materials can I use these drill bits on?
The drill bits are designed for dry or wet drilling on hard materials including porcelain tile, granite, marble, and ceramic.
I need to make a hole larger or smoother after drilling. Which tool should I use?
For enlarging, shaping, or rounding the edges of an existing hole, you should use the Finger Bit. It works on porcelain, hard ceramic, marble, and granite.
How can I create a smooth, beveled edge on a hole?
Use the Chamfer Bit. It is specifically designed for chamfering, widening, grinding, and polishing the exit holes of your drillings for a clean, finished look.
I have a standard SDS drill. Can I use these bits with it?
Yes, you can. By using the included SDS Adapter, you can fit all the 5/8-11 threaded bits (Drill Bits, Finger Bit, Chamfer Bit) onto your standard SDS drill.
What is the key feature that makes these bits effective and long-lasting?
They are manufactured using vacuum brazed technology. This ensures high efficiency, fast drilling, a long lifetime, less chipping, and minimizes breakage and material loss.
What is the actual drilling depth of the Drill Bits?
The total length of the Drill Bits is 60mm, with a diamond segment height of 10mm. The effective drilling depth will be less than the total length, depending on the tool holder, but the workable diamond-cutting portion is 10mm tall. For precise depth requirements, please check the specific bit and your setup.
