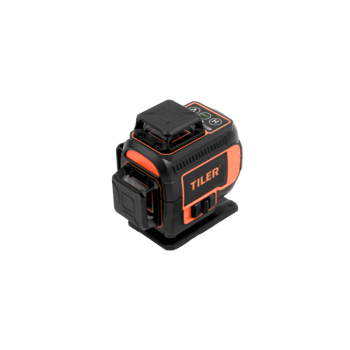

TCJ-11 16-Line Laser Level | Green/Red Beam Selectable | 4000mAh Battery | Dual Mounting Threads | OEM/ODM Service Factory price

group name: Laser Level

Min Order: 1 piece

brand name: TILER tile cutting and laying tools distrubutor

model: TCJ-11

Nearest port for product export: Shanghai, Ningbo, Guangzhou, Yiwu

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash

update time: Sat, 08 Nov 2025 06:00:15 GMT

contact supplier

Paramtents

LASER CLASS CLASS II
LASER WAVELENGTH GREEN BEAM: 515NM / RED BEAM: 635NM
H/V ACCURACY ±3MM/10M
SELF-LEVELING RANGE 4°±1°
WORKING RANGE 30M / RED: 15M
POWER SUPPLY 4000MAH LI BATTERY
OPERATING TEMPERATURE -10°C TO 50°C
MOUNT SIZE 1/4-20 & 5/8" MOUNTING THREAD
IP RATING IP54

Packging & Delivery

Min Order1 piece

Briefing

High Precision TCJ-07 Self-Leveling Laser Level - Dual-Line Green & Red Beams | 30m Range | Customized Solutions for Wholesalers & Distributors

Detailed

◢ SPECIFICATION

ART	QTY/INNER BOX	QTY/OUTER BOX
TCJ-11	/	/

◢ DESCRIPTION

TCJ-11 16-Line Laser Level | Green/Red Beam Selectable | 4000mAh Battery | Dual Mounting Threads | OEM/ODM Service Factory price

▪ Dual Laser Beam Options: Choose between high-visibility green beam (515nm) for 30m range or standard red beam (635nm) for 15m, providing flexibility for different job site requirements and budgets

▪ Extended Battery Performance: 4000mAh high-capacity lithium battery ensures all-day operation without frequent recharging, ideal for extended work shifts

▪ Universal Mounting Compatibility: Features both 1/4-20 and 5/8" mounting threads, offering seamless compatibility with virtually all professional tripods and mounting accessories

▪ Enhanced Self-Leveling Range: 4°±1° self-leveling capability provides wider setup tolerance on uneven surfaces while maintaining professional ±3mm/10m accuracy

▪ Job Site Durability: IP54 rating protects against dust and water splashes, combined with -10°C to 50°C operating range for reliable performance in various environments

◢FAQ

What are the practical benefits of having both green and red beam options?

The dual-beam option allows contractors to select the best tool for their specific needs. The green beam offers superior visibility for large spaces or bright conditions (30m range), while the red beam provides a cost-effective solution for standard indoor applications (15m range).

How does the 4000mAh battery compare to other models?

The 4000mAh capacity is significantly higher than standard laser levels (typically 2000-3000mAh), providing extended runtime that can cover multiple workdays on a single charge, reducing downtime and improving productivity.

What's the advantage of having dual mounting threads?

The combination of 1/4-20 and 5/8" threads ensures compatibility with all major tripod systems worldwide. This eliminates the need for adapters and allows seamless integration with both photographic equipment and professional surveying mounts.

What level of accuracy can I expect for precision work?

The TCJ-11 maintains professional-grade ±3mm accuracy at 10 meters, making it suitable for high-precision applications including cabinetry, tiling, drop ceiling installation, and structural framing work.

Is this laser level suitable for outdoor use?

Yes, with its IP54 rating for dust and water resistance, combined with a wide operating temperature range (-10°C to 50°C), the TCJ-11 performs reliably in various outdoor conditions and challenging job site environments.

How does the self-leveling feature work and what's its range?

The automatic self-leveling system activates when the unit is within 4° of level, with ±1° accuracy. If placed outside this range, the laser will typically blink or shut off to indicate it cannot self-level, ensuring measurement accuracy.
