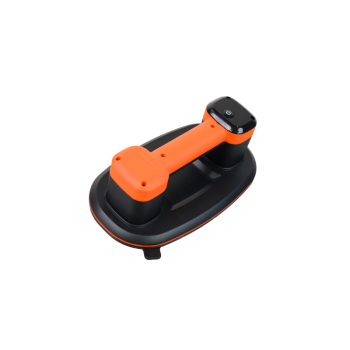

TPZ-K15 Electric Suction Cup for Tiling 300kgs Load Capacity Ideal for Smooth & Rough Surfaces 260x150mm Size - Perfect for Distributors and Wholesalers

group name: Electric Suction Cup for Tile Carrying

Min Order: 1 piece

brand name: TILER tile cutting and laying tools distrubutor

model: TPZ-K15

Nearest port for product export: Shanghai, Ningbo, Guangzhou, Yiwu

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash

update time: Tue, 04 Nov 2025 06:48:29 GMT

contact supplier

Paramtents

Diameter of suction cup 260x150mm
Load capacity 300kgs
Material of suction cup Nitrile rubber
Application Suitable for smooth and rough tiles
Nominal voltage 3.7 V
Battery capacity 1800mAh*2
Charging time 2h
Service time under normal conditions 8h

Packging & Delivery

Min Order1 piece

Briefing

OEM/ODM TPZ-K25 Electric Suction Cup with 300kgs Load Capacity - Perfect for Large Format Tile Installation | 260x150mm for Smooth & Rough Surfaces | Ideal for Distributors and Wholesale Buyers

Detailed

◢ SPECIFICATION

ART	QTY/INNER BOX	QTY/OUTER BOX
TPZ-K15	1PC	10PCS

◢ DESCRIPTION

TPZ-K15 Electric Suction Cup for Tiling 300kgs Load Capacity Ideal for Smooth & Rough Surfaces 260x150mm Size - Perfect for Distributors and Wholesalers

▪ Industrial-Grade Performance with 300kg Lift

Engineered for heavy-duty tasks, this suction cup delivers a powerful 300kg load capacity, making it ideal for handling large, heavy tiles and materials with absolute confidence.

▪ Auto-Air Compensation for Leak-Proof Hold

Features advanced automatic air replenishment technology. This ensures a consistent and reliable seal, preventing air leakage for a long-lasting and secure grip, even during extended use.

▪ Superior Sealing & Filtration for All Surfaces

Equipped with a triple-layer thickened rubber pad for enhanced sealing and durability. The double-layer air filter protects the mechanism from dust, allowing it to work effectively on both smooth and textured tiles.

▪ User-Centric Intelligent Design

Operate with ease: one touch for adsorption, double-tap for release. The clear digital display shows real-time suction force and battery levels, while the modern Type-C charging port offers convenient, fast recharging.

▪ High-Capacity Integrated Power System

Powered by a robust 21V battery with a consolidated capacity of 3600mAh (2*1800mAh). This design provides extended runtime for demanding work schedules, all in a single, powerful battery pack.

◢FAQ

What kind of surfaces can the TPZ-K15 handle?

It is specifically designed to handle a wide range of surfaces encountered in tiling and construction. It works perfectly on smooth surfaces like glass and polished stone, as well as on rough or textured surfaces like unpolished tiles, thanks to its triple-layer thickened rubber pad.

How does the "auto-air compensation" and "leak-proof" feature work?

The automatic air compensation system actively monitors the internal pressure. If it detects any minor air leakage, it will automatically engage to replenish the lost air, maintaining a constant vacuum and a secure seal. This is what allows it to provide a long-lasting hold.

How do I operate the suction cup? Is it complicated?

Not at all. It's designed for ultimate simplicity. Press the button once to activate the suction and lift. To release the object, just quickly press the button twice. The intuitive controls require minimal training.

What does the digital screen display, and why is it useful?

The screen shows two key pieces of information: the current suction force (so you can confirm it's secure) and the remaining battery level. This allows you to work precisely and avoid unexpected power loss during a critical lift.

What charging cable does it use?

It uses a modern and universal Type-C charging interface. This makes charging convenient as you can likely use the same cable as many modern smartphones and devices, reducing the number of different cables you need on site.

What is the total battery capacity and how is it charged?

The product comes with one powerful, integrated battery pack. Its total capacity is 3600mAh (configured as 2*1800mAh inside the pack). It features a modern Type-C charging port, making charging fast and convenient, as you can use a widely available Type-C cable.
