TYF-DB-CY-04 Large Format Slab Handling System Featuring Electric Vacuum Suction Cups | Ideal for Wholesale and OEM/ODM Partnerships

group name: Large Format Slab Handing System

Min Order: 1 piece

brand name: TILER tile cutting and laying tools distrubutor

model: TYF-DB-CY-04

Nearest port for product export: Shanghai, Ningbo, Guangzhou, Yiwu

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash

update time: Wed, 29 Oct 2025 02:01:42 GMT

contact supplier

Paramtents

Material Premium aluminum alloy
Suction cup type Heavy duty vacuum suction cup 8 inch
Number of suction cup 6
Maximum load capacity 260kgs
Power source Li-ion-powered

Packging & Delivery

Min Order1 piece

Briefing

TYF-DB-CY-04 Large Format Slab Handling System with Electric Vacuum Suction Cups | Perfect for OEM/ODM and Wholesale Partnerships.

Detailed

◢ SPECIFICATION

ART	QTY/INNER BOX	QTY/OUTER BOX
TYF-DB-CY-04	/	1PC

◢ DESCRIPTION

TYF-DB-CY-04 Large Format Slab Handling System Featuring Electric Vacuum Suction Cups | Ideal for Wholesale and OEM/ODM Partnerships

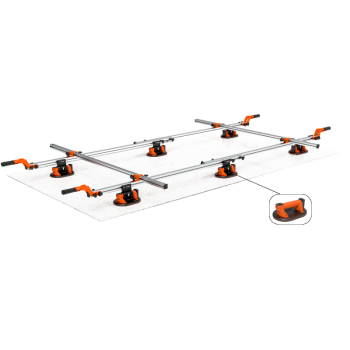

The large format slab handing system is specially designed for handling large format slabs up to 360 cm in length.

Reinforced aluminum profile. Greater structural strength.
The set consists of two retractable and adjustable extruded aluminum guides, ranging from 160 to 360 cm.
The system is equipped with 6 heavy-duty electric vacuum suction cups that securely fix the system in place. These suction cups are easily positionable and allow for adjustable fixing points, ensuring the safe handling of large format sheets.
Handle kit makes lifting the slab even more comfortable.
The crossbars can be easily released for transporting long narrow slabs.
Maximum load capacity: 260 kg.
Electric Suction Cup Spc.

Battery: 4000 mAh

Voltage: 3.7 V

Cup Material: Nitrile Rubber

Cup Dia.: 240 x 160 mm

Max Force: 260 Kgs

Lateral Force: 160 Kgs

◢FAQ

What is the maximum slab size and weight this system can handle?

Our system is engineered for large-format materials. It can securely handle slabs up to 360 cm in length and has a maximum load capacity of 260 kg.

How is the system powered, and what is the battery life of the suction cups?

The system features independent, heavy-duty electric vacuum suction cups. Each one is powered by a robust 4000 mAh battery, ensuring extended operation without the need for frequent recharging during handling tasks.

Can the system be adjusted for different slab sizes and shapes?

Absolutely. The system includes two retractable and adjustable extruded aluminum guides, allowing the width to be set from 160 cm to 360 cm. Furthermore, the crossbars can be released for transporting long, narrow slabs, and the six suction cups are easily repositionable for optimal placement.

What safety features are in place to prevent the slab from slipping or dropping?

Safety is a core design principle. The six electric vacuum suction cups provide a powerful and secure fixation, with a maximum vertical holding force of 260 kg. The system is constructed from reinforced aluminum profiles for greater structural strength and to prevent flexing, ensuring stable and safe handling.

What are the specifications of the electric suction cups?

The heavy-duty electric suction cups feature a large, nitrile rubber sealing surface (240 x 160 mm), providing excellent grip on various materials. They operate on a 3.7 V system and can generate a maximum vertical force of 260 kg, with a lateral force capacity of 160 kg.

Is this system suitable for OEM/ODM partnerships and wholesale?

Yes, we specialize in providing ideal solutions for wholesale and OEM/ODM partnerships. We can work with you to customize this large-format slab handling system to meet your specific branding and operational requirements.
