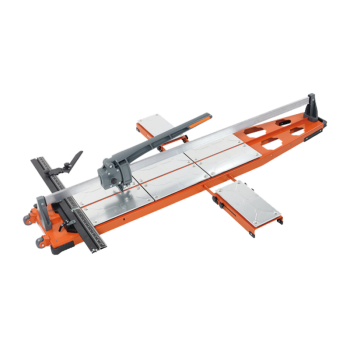

TILER 8102G-3Y Large Format Manual Tile Cutter | Precise Cutting Performance | Perfect for Large Tiles
- group name
- Manual Tile Cutters
- Min Order
- 50 piece
- brand name
- TILER tile cutting and laying tools distrubutor
- model
- 8102G-3Y
- Nearest port for product export
- Shanghai, Ningbo, Guangzhou, Yiwu
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 20:31:19 GMT
Paramtents
Material Durable steel
Guide Rails Material Reinforced Alloy Steel
Cutting Wheel Material Tungsten Carbide
Cutting Thickness Up to 18mm
Cutting Accuracy Within 1.0mm
Separator Power 1200kgs
Base Engraving Laser Engraved
Maximum Width of Expansion 930mm
Packging & Delivery
-
Min Order50 piece
Briefing
TILER Large Format Manual Tile Cutter 8102G-3Y with Transport Handle and Wheels, Laser Engraved Base, 10 Ball Bearing inside.
Detailed
◢ SPECIFICATION
|
ART.
|
MAX.CUTTING LENGTH
(mm) |
MAX.DIAGONAL CUTTING LENGTH(mm) |
CUTTING
THICKNESS (mm) |
BREAKING
POWER (kg) |
SIZE OF CUTTING WHEEL (mm) | QTY/CTN | WEIGHT (kg) | LxWxH (cm) |
8102G-3Y-1050 | 1050 | 740 | 4-18 | 1200 | 22*6*6 | 1 | 27 | 136*35.5*28.5 |
|
8102G-3Y-1300
|
1300
|
920 |
4-18
|
1200
|
22*6*6 | 1 | 32 | 161*35.5*28.5 |
|
8102G-3Y-1550
|
1550
|
1095 |
4-18
|
1200
|
22*6*6 | 1 | 35.5 | 186*35.5*28.5 |
◢ DESCRIPTION
TILER Large Format Manual Tile Cutter 8102G-3Y with Transport Handle and Wheels, Laser Engraved Base, 10 Ball Bearing inside, Anti-Skid Feet & Ergonomic Handle, for Precision Cutting Porcelain Ceramic Floor Tiles, Manufacturer Wholesale 【1050|42 inch; 1300mm|52inch；15500mm|62inch】
▪ Precision Cutting: With an accuracy of within 1.0mm, this tile cutter is ideal for precise cuts and ensures that your tiles fit perfectly.
▪ Versatile: The tile cutter can handle various types of cuts, including straight cuts and angle cuts between 0° and 60°, making it suitable for a wide range of tiling projects.
▪ Durable and Reliable: The base of the tile cutter is made of steel and the guide rails are made of reinforced alloy steel, ensuring durability and longevity. The cutting roller has a service life of up to 2000 meters, making it a reliable tool for your tiling needs.
▪ Easy to Use: The tile cutter comes with an 80cm aluminum die-casting adjustable gauge and a human-engineering big handle, making it easy to adjust and use. The transfer wheels and handle also make it easy to move the tile cutter around.
▪ High Capacity: The tile cutter has a separator power of 1200kgs and can handle tiles up to 18mm thick, making it suitable for high-volume tiling projects.
▪ Support for Large Tiles: The tile cutter comes with 1 pair of extension arms to support large-size tiles, and can handle tiles with a maximum width of expansion of 930mm.
▪ Smooth Cutting: The support parts are made of strong die casting aluminum and have sliding bars with ball bearing technology, ensuring smooth and effortless cutting.
▪ Manual Tile Cutter 8102G-3Y Top Range ▪
Looking for a powerful and reliable tile cutter to add to your product lineup? Look no further than the 8102G-3Y Top Range Manual Tile Cutter! With a separator power of 1200kgs, it can handle tiles up to 18mm thick with ease, making it the perfect tool for high-volume tiling projects.
➣ Order now and stay ahead of the competition!
➣ Order now and stay ahead of the competition!
◢ MODELS FOR 8102G-3Y
▪ 8102G-3Y-1300 ▪
Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material:steel
Width of Base :300mm
The maximum width of expansion：930mm
Guide rail material:alloy steel
Guide rail section size:40*15mm
Galvanized spring cover plate
Cutting roller (cutter):22mm
Transfer wheels and handle :Yes
▪ 8102G-3Y-1550 ▪
Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material:steel
Width of Base :300mm
The maximum width of expansion：930mm
Guide rail material:alloy steel
Guide rail section size:40*15mm
Galvanized spring cover plate
Cutting roller (cutter):22mm
Transfer wheels and handle :Yes
◢ FAQ
What types of cuts can the TILER Large Format Manual Tile Cutter 8102G-3Y handle?
The TILER Large Format Manual Tile Cutter 8102G-3Y can handle various types of cuts, including straight cuts and angle cuts between 0° and 60°.
What is the maximum thickness of tiles that the TILER Large Format Manual Tile Cutter 8102G-3Y can handle?
The TILER Large Format Manual Tile Cutter 8102G-3Y can handle tiles up to 18mm thick, making it suitable for high-volume tiling projects.
Can the TILER Large Format Manual Tile Cutter 8102G-3Y support large tiles?
Yes, the tile cutter comes with 1 pair of extension arms to support large size tiles, and can handle tiles with a maximum width of expansion of 930mm.
Is the cutting process smooth and effortless with the TILER Large Format Manual Tile Cutter 8102G-3Y?
Yes, the support parts are made of strong die casting aluminum and have sliding bars with ball bearing technology, ensuring smooth and effortless cutting.
How durable is the TILER Large Format Manual Tile Cutter 8102G-3Y?
The base of the tile cutter is made of steel and the guide rails are made of reinforced alloy steel, ensuring durability and longevity. The cutting roller has a service life of up to 2000 meters.
Is the TILER Large Format Manual Tile Cutter 8102G-3Y easy to use?
Yes, the TILER Large Format Manual Tile Cutter 8102G-3Y is designed to be easy to use. It comes with an 80cm aluminum die-casting adjustable gauge and a human-engineering big handle, which make it easy to adjust and use. The tile cutter also features a spring-loaded cover plate that makes it easy to cut tiles. Additionally, the transfer wheels and handle make it easy to move the tile cutter around, allowing you to work on your tiling project with ease.
